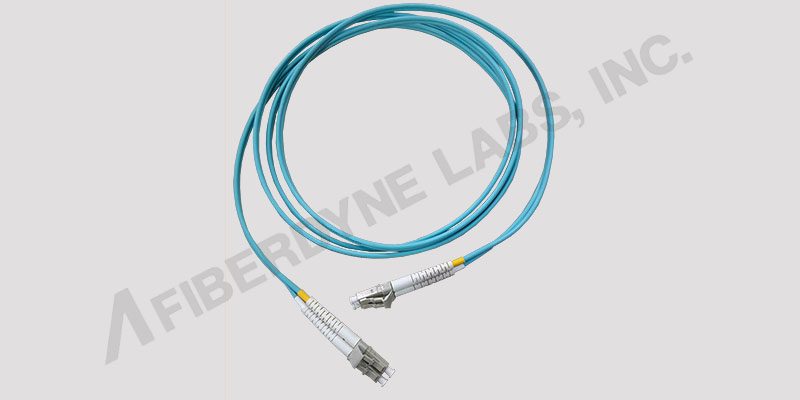

10G 50/125 OM3 Multimode Duplex Riser 2.0mm

Fiberdyne’s 10 Gig 50/125 OM3 Multimode Duplex Riser 2.0mm cable assemblies deliver reliable, high bandwidth performance for data centers, enterprise networks, and high speed communication environments. These cables support 10 gigabit transmission up to 300 meters and 1 gigabit distances up to 800/550 meters at 850/1300 nm.



Key Features:

• ∙ Supports 10G OM3 multimode performance
• ∙ 50/125 µm core/cladding
• ∙ Available with LC, SC, and ST connectors

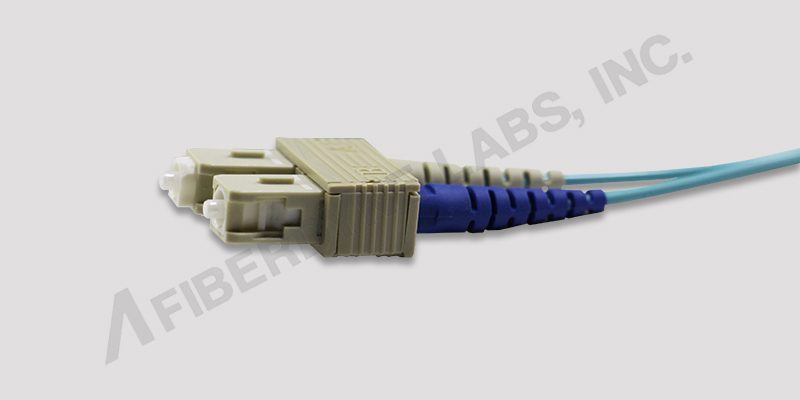

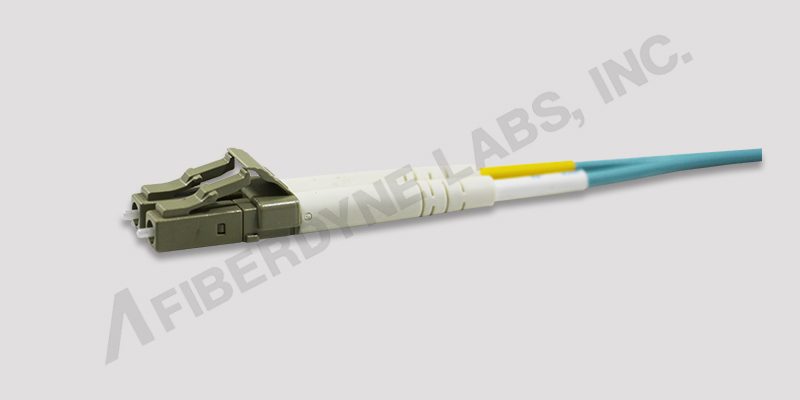

• ∙ Optional duplex clips/yokes
• ∙ Multiple boot styles: short, bendable, *45°, *90°, Uni Boot (LC)
• ∙ Riser rated 2.0mm jacket
• ∙ Plenum and 3mm cable options available upon request
• ∙ Custom labeling and lengths offered
• ∙ Insertion loss
• ∙ Operating temperature: −40°C to +75°C
• ∙ Humidity range: 5%–95% non condensing

Note:
*Not available on all boots



Applications:

• ∙ Data centers
• ∙ High speed LAN/WAN networks
• ∙ Telecommunications rooms
• ∙ Backbone and horizontal cabling
• ∙ Equipment interconnects



Available Connector Configurations:

• ∙ LC–LC Duplex
• ∙ LC–SC Duplex
• ∙ SC–SC Duplex
• ∙ SC–ST Duplex
• ∙ ST–ST Duplex



Additional combinations available upon request



Ordering Information: Specify connector type and cable length when ordering.



Custom configurations and labeling are supported.
3mm cables available



Specifications:
Technical Date Sheet



Cable & Connector Specifications: Fiber Type Multimode Core/Cladding Size 50/125 OM3 10 Gb Distance 300 Meters 1 Gb Distance 800/550M Meters (850/1300nm) Insertion Loss (Per Mated Pair) <0.8dB Repeatability > 500 Cycles Operating Temperature -40°C To +75°C Humidity Range 5% To 95% (Non-Condensing)

New York



10G 50/125 OM3 Multimode Duplex Riser 2.0mm LC-LC Duplex F9C21Q2GCCCXXX Specify Length When Ordering LC-SC Duplex F9C21Q2GCCYXXX Specify Length When Ordering SC-SC Duplex F9C21Q2GCYYXXX Specify Length When Ordering SC-ST Duplex F9C21Q2GCY1XXX Specify Length When Ordering ST-ST Duplex F9C21Q2GC11XXX Specify Length When Ordering

Other Connector Combinations available.
