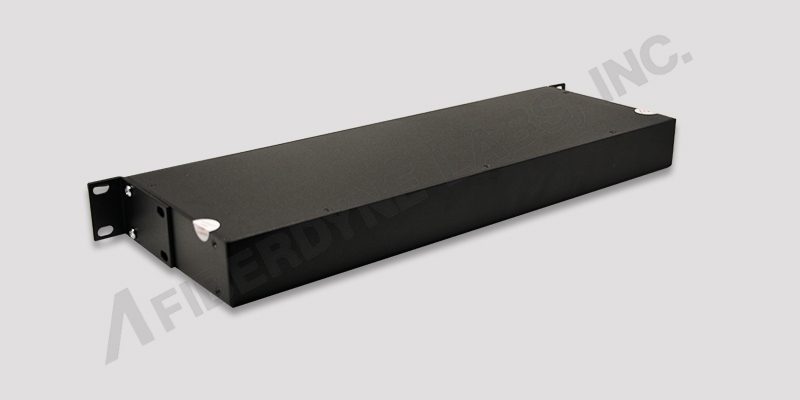

FWX-CET1522 and FWX-CET1523 Rackmount Modules

Description
Fiberdyne Labs’ FWX-CET1522 and FWX-CET1523 rackmount modules feature 16 circuits of a modified CoExistent WDM (CoEx WDM) Type 1 with a 1550nm Overlay.

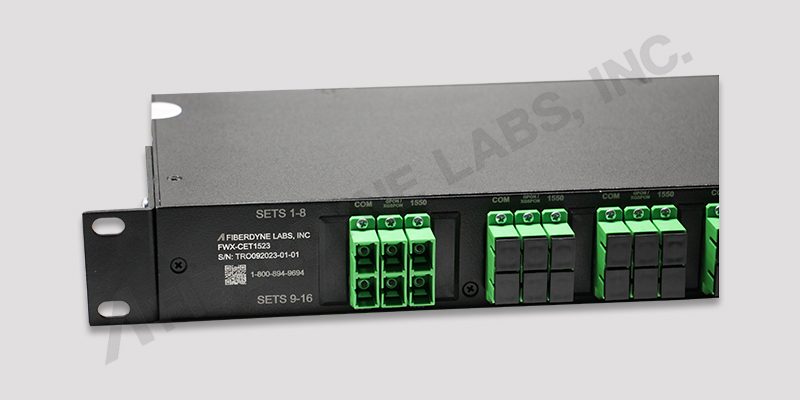

 - The FWX-CET1522 features 16 separate 4-port circuits consisting of a Common Port, a GPON Port, an XGS-PON Port and a 1550nm Overlay Port with SC/APC Adapters for 64 Total Ports.



 - The FWX-CET1523 features 16 separate 3-port circuits consisting of a Common Port, a combined GPON & XGS-PON Port, and a 1550nm Overlay Port with SC/APC Adapters for 48 Total Ports.



Features:

• - High Isolation
• - Low Insertion Loss
• - Complies with RoHS
• - 16 Circuits in Convenient 19" 1U Module





Specifiations:

Parameters Unit Specification Operating Wavelengths Common nm 1260-1620 GPON 1290-1330 &1480-1500 XGS-PON 1260-1280 &1575-1580 1550 1540-1560 Channel Ripple dB <0.5 Polarization Dependent Loss dB <0.10 Insertion Loss FWX-CET1522 dB   GPON <0.8 XGS-PON <1.2 1550 <1.6 FWX-CET1523   GPON & XGS-PON <1.4 1550 <0.8 Isolation FWX-CET1522 dB   COM → GPON >30 Com → XGS-PON >30 COM → 1550 >45 FWX-CET1523   COM → GPON & XGS-PON >30 COM → 1550 >45 PMD ps <0.10 Directivity dB >50 Return Loss dB >45 Connector   SC/APC Operating Temperature °C -5~+75 Storage Temperature °C -40~+85 Ordering Information   Port Configuration FWX-CET1522 16 x Common, GPON, XGS-PON, 1550 FWX-CET1523 16 x Common, Combined, GPON, XGS-PON, 1550

Note: For custom requirements contact a Fiberdyne Sales Representative
