Dispersion Compensation Modules

Introduction:
  DCM dispersion compensator has the function of slope compensation. It can compensate the dispersion slope of the standard singlemode fiber (G.652) in the C band, which can optimize the residual dispersion. It is based on mature and reliable optical fiber technology, which can improve the performance of the optical transmission system. The dispersion of the 1550nm wavelength can reach -10 to -2100ps/nm and can provide products with special requirements for central wavelength and dispersion.

Features:

• ∙ G.652 fiber C band 100% slope compensation (Standard Value)
• ∙ Low polarization mode dispersion
• ∙ Wide band dispersion compensation for DWDM system
• ∙ Performance index through the GR-2854-CORE Telecordia standard certification
• ∙ Reliability through the GR-2854-CORE Telecordia standard certification

Specifications:
     PDF Version of web page
     Technical Data Sheet
     Sample Test Report FDCM120F



Part Number Description Price FDCM020F Fiber based Dispersion Compensation Module, 20 Km, LC Connectors, C-Band, 1U Rack mount 19"x11"x1.75" Call to Order FDCM030F Fiber based Dispersion Compensation Module, 30 Km, LC Connectors, C-Band, 1U Rack mount 19"x11"x1.75" Call to Order FDCM040F Fiber based Dispersion Compensation Module, 40 Km, LC Connectors, C-Band, 1U Rack mount 19"x11"x1.75" Call to Order FDCM050F Fiber based Dispersion Compensation Module, 50 Km, LC Connectors, C-Band, 1U Rack mount 19"x11"x1.75" Call to Order FDCM060F Fiber based Dispersion Compensation Module, 60 Km, LC Connectors, C-Band, 1U Rack mount 19"x11"x1.75" Call to Order FDCM080F Fiber based Dispersion Compensation Module, 80 Km, LC Connectors, C-Band, 1U Rack mount 19"x11"x1.75" Call to Order FDCM100F Fiber based Dispersion Compensation Module, 100 Km, LC Connectors, C-Band, 1U Rack mount 19"x11"x1.75" Call to Order FDCM120F Fiber based Dispersion Compensation Module, 120 Km, LC Connectors, C-Band, 1U Rack mount 19"x11"x1.75" Call to Order FDCM0140F Fiber based Dispersion Compensation Module, 140 Km, LC Connectors, C-Band, 1U Rack mount 19"x11"x1.75" Call to Order

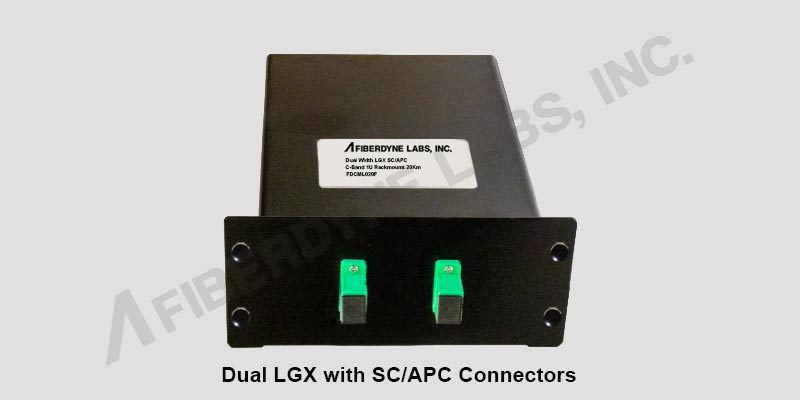

Dual LGX with SC/APC Connectors



Part Number Description Price FDCML020F Dual LGX with SC/APC Connectors 5.1"x6.0"x2.28" (HxDxW) Call to Order FDCML030F Dual LGX with SC/APC Connectors 5.1"x6.0"x2.28" (HxDxW) Call to Order FDCML040F Dual LGX with SC/APC Connectors 5.1"x6.0"x2.28" (HxDxW) Call to Order FDCML050F Dual LGX with SC/APC Connectors 5.1"x6.0"x2.28" (HxDxW) Call to Order FDCML060F Dual LGX with SC/APC Connectors 5.1"x6.0"x2.28" (HxDxW) Call to Order FDCML070F Dual LGX with SC/APC Connectors 5.1"x6.0"x2.28" (HxDxW) Call to Order FDCML080F Dual LGX with SC/APC Connectors 5.1"x6.0"x2.28" (HxDxW) Call to Order

Note: Other Connectors Available
