Fiberdyne Labs, Inc. 3.0 Ruggedized 1 Fiber Drop Cable Assemblies

Description:
Fiberdyne Labs is proud to offer a new cable assembly LSZH 3.0 Ruggedized Cable. Available assembly options include Indoor/Outdoor Riser rated cable with white or black jackets in 3.0 cable. The cable assemblies can be used as single fiber drop cables or for MDU (Multi-dwelling unit) and in-home applications with aggressive routing environments. The cable assemblies can be routed around corners and stapled, similarly to copper wire installations, with negligible signal loss.
Fiberdyne Labs Ruggedized Simplex Fiber Assemblies offer a tighter bend radius than either Commscope® RealFlex 3 Drop Cables or Clearfield® Fieldsmart FDP Ruggedized Jumpers.



Features:

• - 3.0 diameter ruggedized cable
• - G.657.B3 5mm bend radius backwards compatible with G652.D
• - Available Riser LSZH
• - Reinforced solid jacket with dry water-blocked core

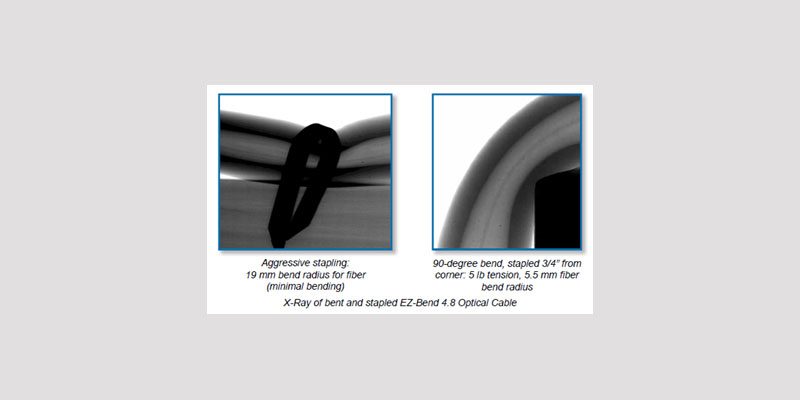

• - Can be routed around corners and stapled for ease of installation using TB

Specification Sheet
    PDF Version of Web page
    3.0 Ruggedized Cables Specification Sheet



Fiberdyne Labs 3.0 Ruggedized 1 Fiber Drop Cable Assemblies with G.657.B3 Fiber Fiberdyne Part Number Cable Type Jacket Color Fiber Count End A Connector End B Connector FMT-91930K-XXXM 3.0 Indoor/Outdoor Riser Black 1 SC/UPC SC/UPC FMT-91931K-XXXM 3.0 Indoor/Outdoor Riser Black 1 SC/APC SC/APC FMT-91932K-XXXM 3.0 Indoor/Outdoor Riser Black 1 LC/UPC LC/UPC FMT-91933K-XXXM 3.0 Indoor/Outdoor Riser Black 1 LC/APC LC/APC FMT-91930W-XXXM 3.0 Indoor/Outdoor Riser White 1 SC/UPC SC/UPC FMT-91931W-XXXM 3.0 Indoor/Outdoor Riser White 1 SC/APC SC/APC FMT-91932W-XXXM 3.0 Indoor/Outdoor Riser White 1 LC/UPC LC/UPC FMT-91933W-XXXM 3.0 Indoor/Outdoor Riser White 1 LC/APC LC/APC FMT-91934W-XXXM 3.0 Indoor/Outdoor Riser White 1 SC/UPC SC/APC FMT-91935W-XXXM 3.0 Indoor/Outdoor Riser White 1 SC/UPC LC/UPC FMT-91936W-XXXM 3.0 Indoor/Outdoor Riser White 1 SC/UPC LC/APC FMT-91937W-XXXM 3.0 Indoor/Outdoor Riser White 1 SC/APC LC/UPC FMT-91938W-XXXM 3.0 Indoor/Outdoor Riser White 1 SC/APC LC/APC FMT-91939W-XXXM 3.0 Indoor/Outdoor Riser White 1 LC/UPC LC/APC



Note: - For "XXXM" enter length in Meters. Example 10 Meters = 010M - Alternate jacket colors available by special request
