Fiberdyne Labs, Inc. Singlemode Duplex Riser 2.0mm Cables

Singlemode Duplex OS2 Riser 2.0mm

Custom Labeling Available
Other Connector Combinations Available
Boot Options:

- Short boots
- Bendable Boots
- *45° Boots
- *90° Boots
- Uni-boots available for LCs

LC & SC connectors available with or without clips/yokes
Plenum cable available upon request
3mm cables available
*Not available on all boots

PDF Version of Web page Technical Data Sheet

Cable & Connector Specifications:
Fiber Type
	Singlemode OS2
	ITU Spec	Fiberdyne P/N Code
	G.652.D	"A2"
	G.657.A1	"H2"
	G.657.A2	"R2"
Insertion Loss Per Connector	< 0.3dB, Typical 0.25dB
Return Loss vs. Polish Type	UPC: > 50dB, Typical 55dB APC: > 60dB, Typical 65dB
Apex Offset	< 50µm
Fiber Height	< 100nm
Repeatability	> 500 Cycles

Singlemode Duplex OS2 Riser 2.0mm
LC/UPC-LC/UPC	F9C21__GCCCXXXM	Specify Fiber Type & Specify Length When Ordering
LC/UPC-SC/UPC	F9C21__GCCYXXXM	Specify Fiber Type & Specify Length When Ordering
LC/UPC-ST/UPC	F9C21__GCC1XXXM	Specify Fiber Type & Specify Length When Ordering
LC/UPC-SC/APC	F9C21__GCCWXXXM	Specify Fiber Type & Specify Length When Ordering
LC/UPC-FC/APC	F9C21__GCCAXXXM	Specify Fiber Type & Specify Length When Ordering
LC/APC-LC/APC	F9C21__GCFFXXXM	Specify Fiber Type & Specify Length When Ordering
LC/APC-LC/UPC	F9C21__GCFCXXXM	Specify Fiber Type & Specify Length When Ordering
LC/APC-SC/UPC	F9C21__GCFYXXXM	Specify Fiber Type & Specify Length When Ordering
LC/APC-SC/APC	F9C21__GCFWXXXM	Specify Fiber Type & Specify Length When Ordering

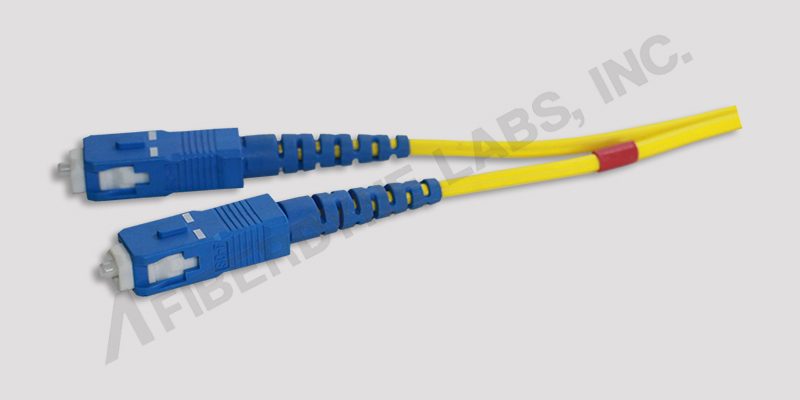

SC/UPC-SC/UPC	F9C21__GCYYXXXM	Specify Fiber Type & Specify Length When Ordering
SC/UPC-SC/APC	F9C21__GCYWXXXM	Specify Fiber Type & Specify Length When Ordering
SC/APC-SC/APC	F9C21__GCWWXXXM	Specify Fiber Type & Specify Length When Ordering

Note: Please insert Fiberdyne P/N Code in Blank

Fiberdyne Labs manufactures Singlemode & Multimode Assemblies in a variety of configurations. New York
Call your Fiberdyne Sales Representative at 800-894-9694 or email us at
