Fiberdyne Labs, Inc. 12 Pack Singlemode Simplex Color Coded Assemblies OS2 900µm Pigtail Assemblies

12 Pair Color 900 Micron Singlemode SC/APC-Pigtail

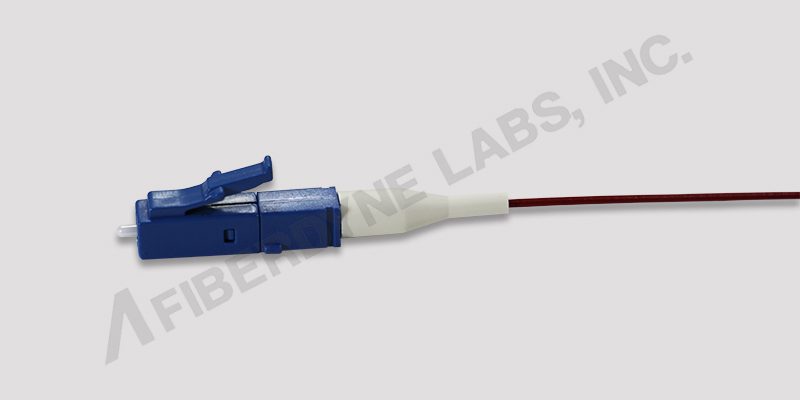

LC/UPC Connector 12 Pack Singlemode Simplex OS2, Color Coded Assemblies

12 Pack Singlemode Simplex OS2 900µm Pigtail Assemblies

Name: 12 Pack Singlemode Simplex OS2, 900um Pigtail Assembly
Brand: Fiberdyne Labs

Other Connectors Available
2 & 3mm cables available

Fiber Optic Pigtails
6 Pack Singlemode Simplex OS2 900µm Pigtails

Technical Date Sheet

Cable & Connector Specifications:
Fiber Type	Singlemode OS2 (SMF-28)
Insertion Loss Per Connector	< 0.3dB, Typical 0.25dB
Return Loss VS. Polish Type	UPC: > 50dB, Typical 55dB APC: > 60dB, Typical 65dB
Apex Offset	< 50µm
Fiber Height	< 100nm
Repeatability	> 500 Cycles
Operating Temperature	-40°C To +75°C
Humidity Range	5% To 95% (Non-Condensing)
Strain Relief Boot Lengths	2.2cm to 3.5cm Available

12 Pack Singlemode Simplex OS2 900µm Pigtail Assemblies
LC/UPC-Pigtail 12 Pack	F9G1BA4GCL0XXXM-12P	Specify Length When Ordering

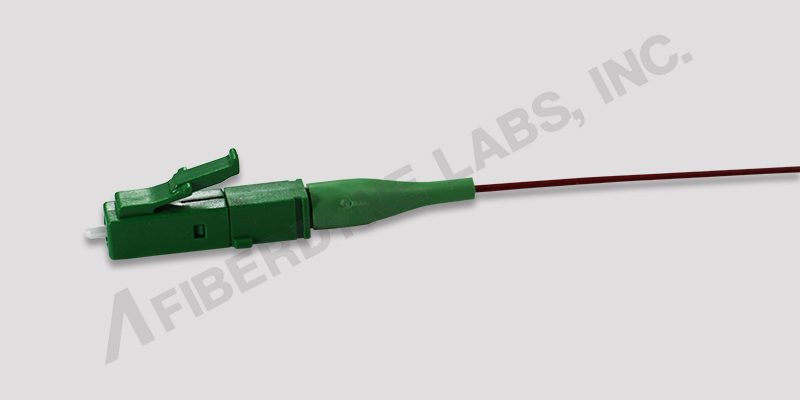

LC/APC-Pigtail 12 Pack	F9G1BA4GCN0XXXM-12P	Specify Length When Ordering

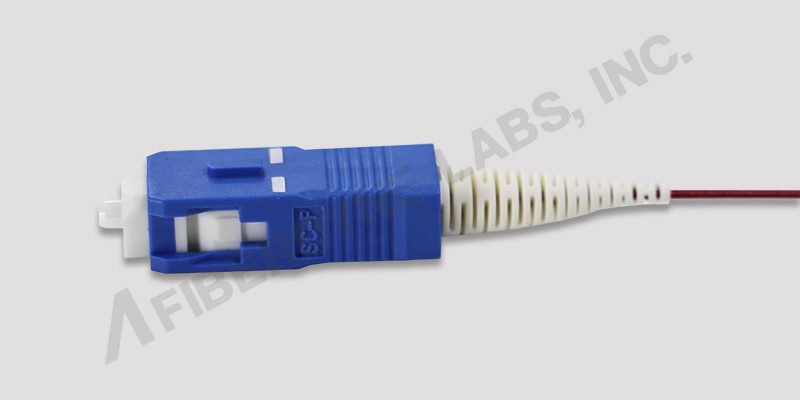

SC/UPC-Pigtail 12 Pack	F9G1BA4GC60XXXM-12P	Specify Length When Ordering

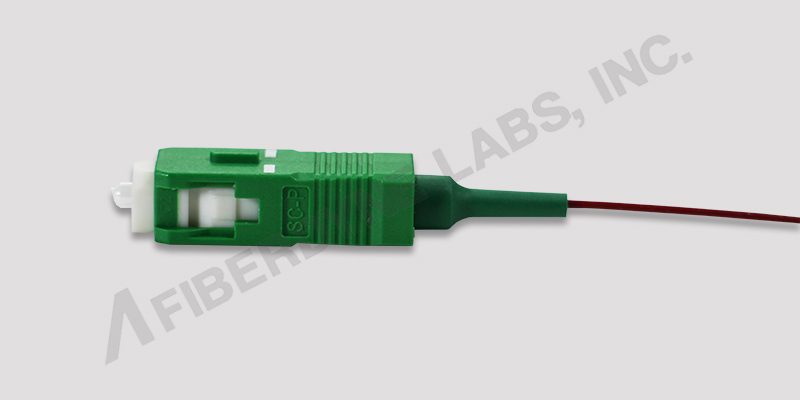

SC/APC-Pigtail 12 Pack	F9G1BA4GCB0XXXM-12P	Specify Length When Ordering

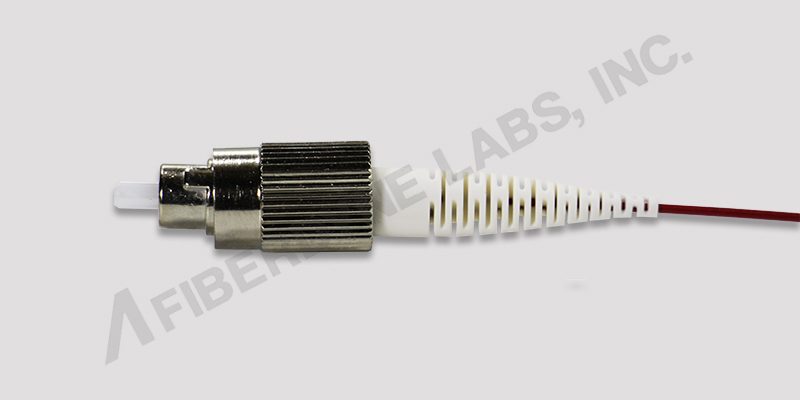

FC/UPC-Pigtail 12 Pack	F9G1BA4GC70XXXM-12P	Specify Length When Ordering
FC/APC-Pigtail 12 Pack	F9G1BA4GCA0XXXM-12P	Specify Length When Ordering

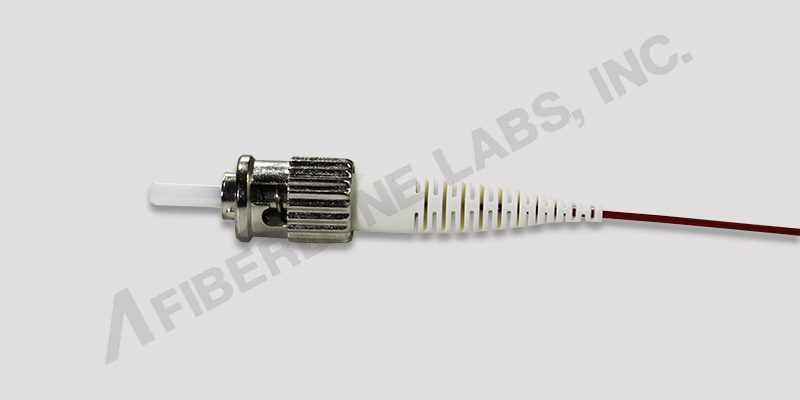

ST/UPC-Pigtail 12 Pack	F9G1BA4GC10XXXM-12P	Specify Length When Ordering

Other Connector Combinations available.

New York

Fiberdyne Labs manufactures Singlemode & Multimode Assemblies in a variety of configurations.
Call your Fiberdyne Sales Representative at 800-894-9694 or email us at
