40 Channel 100GHZ DWDM LGX MDC/UPC Module

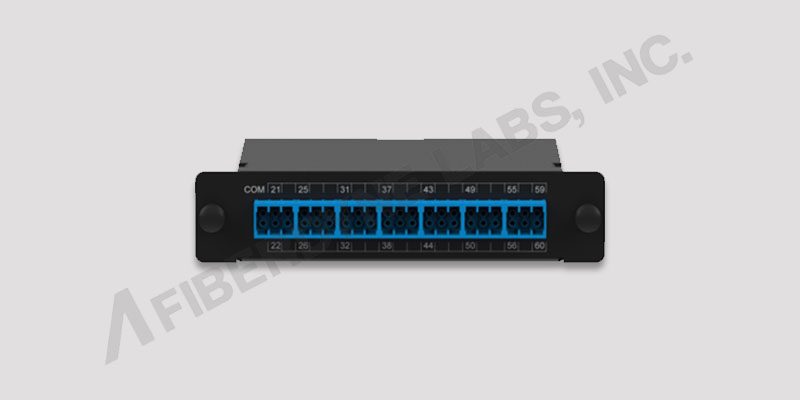

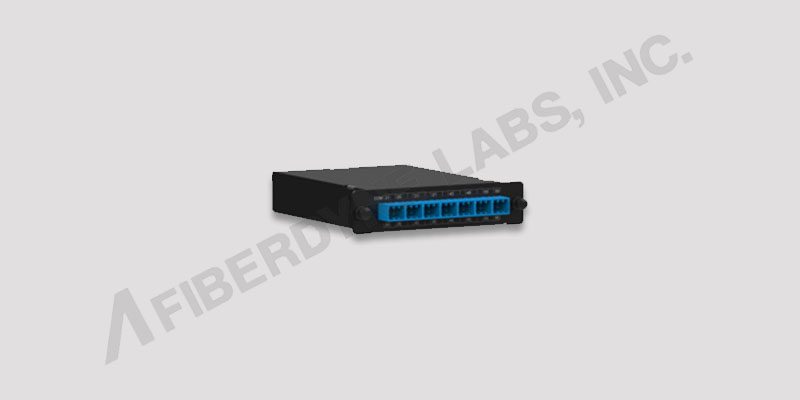

• The Fiberdyne Labs FRX-7000 40 Channel 100Ghz AWG module is packaged in a single wide LGX Module and features MDC/UPC Connectors. The FRX-7000 can be used as either a Mux or Demux.

• Features:
• - Low Insertion Loss
• - High Isolation
• - Low Polarization Dependent Loss
• - High reliability and high stability



Specification:

Port Configuration - 1 x 40 Center Wavelength nm ITU Grid Channel Plan (C21-C60) nm 1529.55-1560.61 Channel Space GHz 100 Channel Passband @ 05.dB nm 0.2 Insertion Loss (Max) dB ≤5.5 Passband Ripple dB ≤0.5 Adjacent Channel Isolation dB ≥25 Non-adjacent Channel Isolation dB ≥30 Polarization Dependent Loss dB ≤0.5 PMD Ps ≤0.5 Return Loss dB ≥40 Directivity dB ≥45 Power Handling mW <300 Operating Temperature °C -5 to 75 Storage Temperature °C -40 to 75 Package Type - LGX Module (Single Width) Connector Type - MDC/UPC Fiberdyne Part Number - FRX-7000

New York

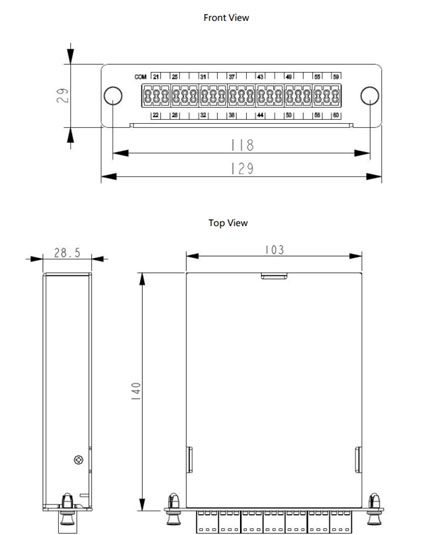

Module Dimensions:



Ordering Information:

40 Channel 100GHz DWDM LGX Module MDC/UPC Ports FRX-7000



Associated Products:

4U 19" Rackmount Termination Box w/12 LGX Slots RTP-072 1U 19" Rackmount Panel w/3 LGX Slots CTM-018 4U 19" "L" Shelf 19" Rackmount Panel w/12 LGX Slots CTM-072 Wallmount Brackets Fits 1 LGX Module with Cable Tie off points WB-LGX1-CM



Associated Cable Assemblies:

MDC/APC-LC/UPC Uniboot Single Mode 2 Fiber Round 1.6mm Cable Assembly FMT-907012-XXXM* MDC/UPC-MDC/UPC Single Mode 2 Fiber Round 1.6mm Cable Assembly FMT-907016-XXXM* MDC/UPC-LC/UPC Uniboot Single Mode 2 Fiber Round 1.6mm Cable Assembly FMT-907017-XXXM*
