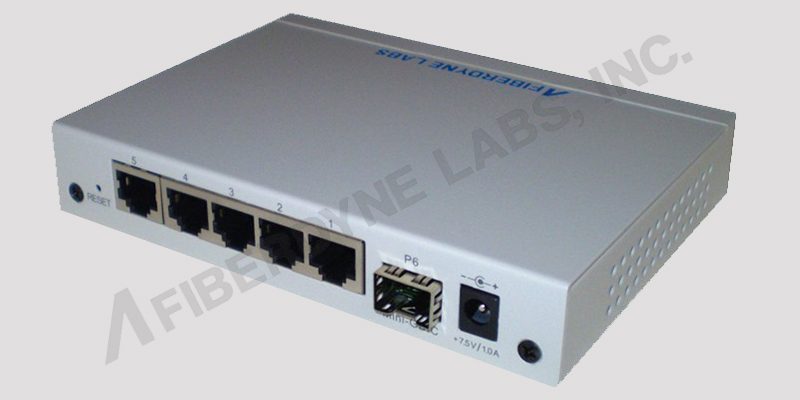

Managed 6-Port L2 Gigabit Ethernet Switches with 1 dual-speed SFP Slot

Introduction:

The device is a 6-port Gigabit Ethernet switch which is featured with the following communication ports in a small footprint box:
• - Five 10/100/1000Mbps Gigabit copper ports
• - One dual-speed SFP slot for 100Base-FX 1000Base-X



Features:

• - 5 10/100/1000Mbps RJ-45 and one dual-speed SFP slot
• - All copper ports support auto-negotiation and auto-MDI/MDI-X detection
• - The SPF slot supports dual speed for 100Base-FX and 1000Base-X SFP transceivers
• - Full wire speed forwarding
• - Supports 802.3x flow control for full-duplex and backpressure for half-duplex
• - Supports SFP with Digital Diagnostic Monitoring (DDM)
• - Provides Automatic Laser Shutdown (ALS) function
• - Provides fiber optical power Alarm (OPA) function
• - Alarm e-mail notification



Management Features:

•   Management:
•   - HTTP/HTTPS/SSHv2/CLI telnet/SNMP v1/v2c/v3/RMON
•   - DHCP/DHCPv6 client, DNS client, NTPv4
•   - IPv6 support, System Syslog, Configuration download/upload, Software upload
•   - KTI's private MIB for DDM monitoring, OPA, ALS, Remote boot, TFTP firmware update over SNMP
•   Security:
•   - NAS, 802.1x, MAC-based/Web/CLI authentication
•   - IP MAC binding, TACACS+, IP source guard
•   Layer 2:
•   - QoS, 802.1Q/Private VLAN, Port Isolation
•   - Storm control for UC/MC/BC packets
•   - Static MAC configuration
•   - IGMP v2/v3 snooping, MLD v1/v2 snooping, DHCP snooping
•   - Multiple Spanning Tree - MSTP, RSTP, STP

New York



Specifications:

      Technical Data Sheet

      Installation Guide



Standard	IEEE 802.3, 802.3ab, 802.3z, 802.3x, 802.1x, 802.1w, 802.1D, 802.1Q
Network Ports	5 10/100/1000Mbps Gigabit copper ports, 1 1G/100Mbps SFP Slot
Copper Port	Shielded RJ-45, 10/100/1000Mpbs, auto-negotiation, auto-MDI/MDI-X support
Mini-GBIC SFP	SFP connector Interface 1000Base-x and 100Base-FX support
Network Cables	10/100/1000Mbps copper Cat 5 up to 100m 1000Base-X 62.5/125um, 50/125um MM fiber, 9/125um SM fiber
MAC Addresses	Table with 8k entries
Buffer Memory	4Mbits
LED Indication	Per Unit: Power Per Port: Speed/link/activity status SFP port: Speed, Link/activity status
Buffer Memory	4Mbits
Power Input	DC jack, Voltage range: +5 ~ +30VDC via external power adapter
Power Consumption	5.4W max. @120VDC (DC In)
Housing	Enclosed metal with no fan
Dimension	144 x 104.5 x 26mm (WxDxH)
Mounting Support	Desktop and wall mounting
Environment	Operating Temperature:    -10°C ~ 45°C (Main device) Storage Temperature:       -40°C ~ 85°C Relative Humidity:              5% ~ 95% non-condensing
Approval	FCC Class A, CE mark Class A, VCCI Class A, IEC60950-1 safety

New York



Ordering Information:

Part Number Description Buy VS-G510-D 6-port Gigabit Ethernet switch Call to Order

Gigabit SFP (sold separately)

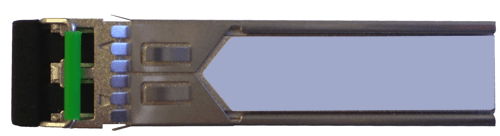

For a selection of SFP Modules which can be used in this switch, please click the below picture.
