Fiberdyne Labs, Inc. 62.5/125 OM1 6 Pack, Color Coded, 900um Pigtail Assemblies

62.5/125 OM1 6 Pack, Color Coded, 900um Pigtail Assemblies

Name: 62.5/125 OM1 6 Pack, Color Coded, 900um Pigtail Assemblies
Brand: Fiberdyne Labs

2 & 3mm cables available

Technical Date Sheet

Cable & Connector Specifications:
Fiber Type	62.5/125 Multimode
Insertion Loss Per Connector	< 0.3dB, Typical 0.25dB
Return Loss VS. Polish Type	UPC: > 50dB, Typical 55dB APC: > 60dB, Typical 65dB
Apex Offset	< 50µm
Fiber Height	< 100nm
Repeatability	> 500 Cycles
Operating Temperature	-40°C To +75°C
Humidity Range	5% To 95% (Non-Condensing)
Strain Relief Boot Lengths	2.2cm to 3.5cm Available

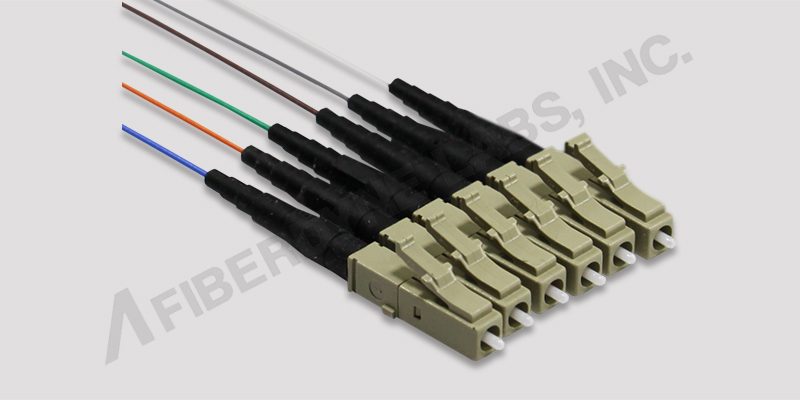

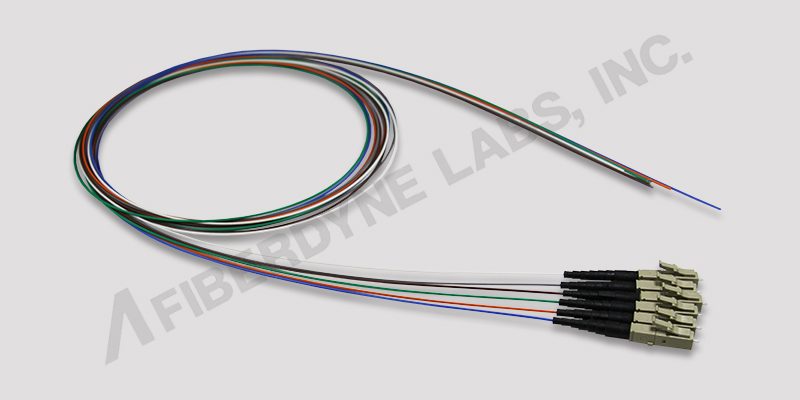

62.5/125 OM1 6 Pack Color Coded 900µm Pigtail Assemblies
LC-Pigtail 6 Pack	F9G1BB1GCL0XXXM6P	Specify Length When Ordering
SC-Pigtail 6 Pack	F9G1BB1GC60XXXM6P	Specify Length When Ordering
ST-Pigtail 6 Pack	F9G1BB1GC10XXXM6P	Specify Length When Ordering
FC-Pigtail 6 Pack	F9G1BB1GC70XXXM6P	Specify Length When Ordering

Other Connector Combinations available.
