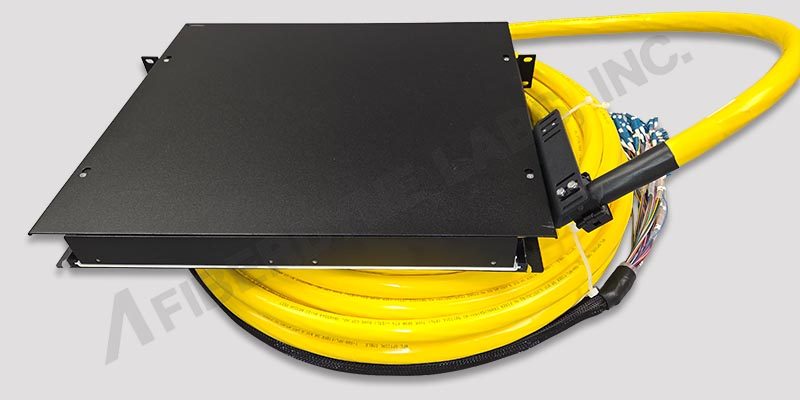

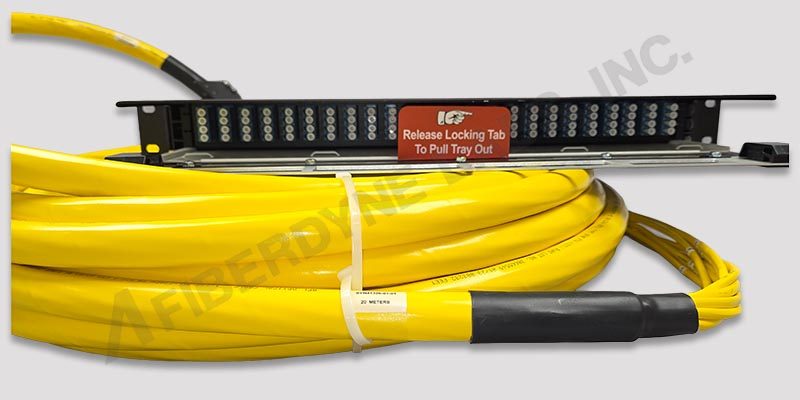

FiberPass HD 96‑Port LC Preloaded 1RU Termination Box

The FiberPass HD 96‑Port LC Preloaded 1RU Termination Box delivers exceptional density and performance in a compact 1RU rack-mount footprint. Engineered for modern high-bandwidth networks, this fully preloaded enclosure arrives ready for rapid deployment, eliminating on-site assembly and reducing installation time.
Built for data centers, enterprise backbones, and service provider networks, the FiberPass HD platform combines rugged construction with clean, intuitive fiber management to support mission-critical connectivity.



Fiberdyne Labs, Inc. also manufactures a FiberPass HD 72-Port LC Preloaded 1RU Termination Box, and a FiberPass HD 144-Port LC Preloaded 1RU Termination Box.
Connector Options Available: LC/LCA



Key Features:
∙ Ultra-High Density (96 LC Ports in 1RU)
   Maximizes rack space efficiency while supporting large-scale fiber distribution in a minimal footprint.

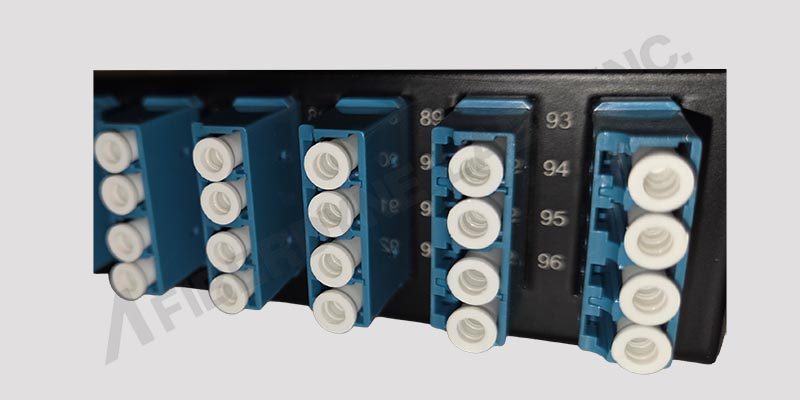

∙ Factory-Preloaded LC Adapters:
   Reduces installation time and ensures consistent optical performance with professionally installed components.
∙ Robust Steel Enclosure:
   Protects terminations and internal routing while maintaining long-term durability in demanding environments.

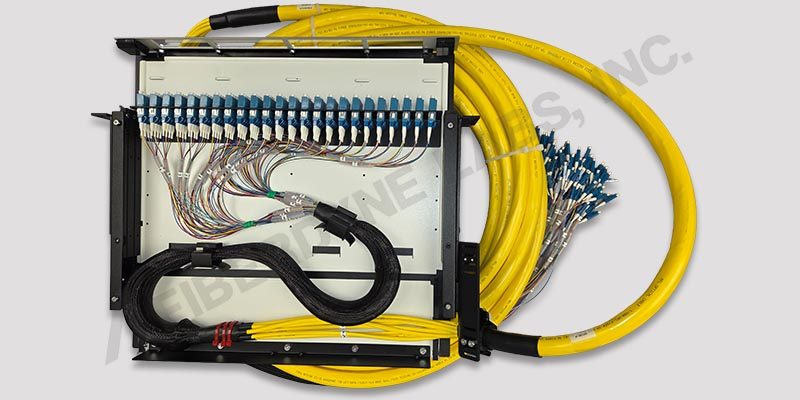

∙ Optimized Cable Management:
   Includes routing guides, strain-relief points, and labeling areas for clean, organized fiber pathways.
∙ Front-Access Design:
   Simplifies moves, adds, and changes with easy access to connectors and internal components.
∙ Flexible Deployment:
   Compatible with single-mode or multimode fiber and available in multiple LC configurations (UPC/APC).
∙ Ideal for High-Capacity Networks:
   Supports data center interconnects, FTTx, enterprise distribution frames, and high-speed transport systems.



Applications:
∙ Data centers and colocation facilities
∙ Enterprise network distribution and backbone
∙ Telecom central offices and headends
∙ Broadband and FTTx deployments
∙ Industrial, utility, and campus networks



FiberPass HD 1RU Termination Box
FPTB-ABC-DEF-GGGH



Position
A = Chassis Type	1 =FiberPass HD, 1RU, 19" 1 Pullout Tray
B = Clamp & Bracket	C = Cable Clamp & Bracket
C = Fiber/Port Count	C = 48 Fiber D = 72 Fiber E = 96 Fiber F = 144 Fiber
D = Cable Type	1 = Riser 2 = Plenum 3 = I/O Riser 4 = Outdoor Non-Armored 5 Outdoor Armored 9 = I/O Plenum	C = I/O Riser Armored D = Indoor Plenum Micro Distribution M = Indoor Armored Riser P = Indoor Armored Plenum W = I/O Armored Plenum 0 = No Cable in Box
E = Fiber Type	A = SM OS2 G.652D H = SM G.657.A1 (10mm) R = SM G.657.A2	B = 62.5/125 OM1 C = 50/125 OM2 Q = 50/125 OM3 T = 50/125 OM4
F = Connector Type	1 = ST/UPC 6 = SC/UPC 7 = FC/UPC	A = FC/APC B = SC/APC L = LC/UPC N = LC/APC
GGG = Cable Length Use All Places	001 002 010	025 100 999	000 (No Fiber)
H = Unit of Measure	F = Feet	M = Meter	0 = No Fiber



Please contact your Sales Representative for more information on ordering.
