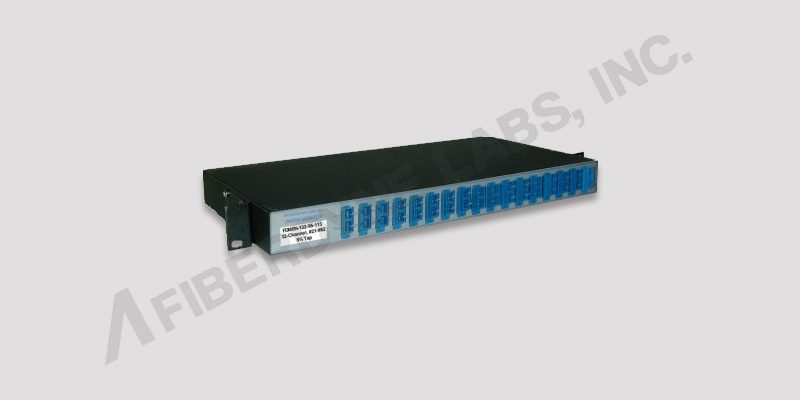

Dense WDM Monitor Module Tap

Introduction:
To describe Fiberdyne Labs, Inc. new rack-mount module, which separates and outputs a sample of each DWDM (Dense Wavelength Division Multiplexing) signal, on a link. The sample is a small percentage of the original signal. The output is filtered, providing only the selected DWDM channel. The result is a monitoring capability, which does not interfere with the link.

New York

Conceptual Usage:
The Monitor Module is added to an existing multiplexed link. A set percentage, of each signal, is "leaked" to the outputs. Then, connect measurement or monitoring equipment, such as power meters or network analyzers, to the module outputs. When monitoring is complete, disconnect the instruments. The network is left undisturbed. New York
Note: Fiberdyne Monitor Modules can be used with all ITU-compliant, mux/demux modules, including Fiberdyne Labs, Inc. mux/demux modules.

Features:

• - Channel numbers and wavelength spacing comply with ITU-T G.694.1
• - Integrated fiber optic splitter and DWDM demultiplexer
• - Ports clearly labeled with Channel number and with wavelength
• - 1U module with reversible brackets, for 19-inch and 23-inch rack frames

Standard Configurations:

• - Two standard configurations: (100-GHz/0.8-nm spacing)
•     - 32-channel module (ITU channels 21-52) with SC connectors

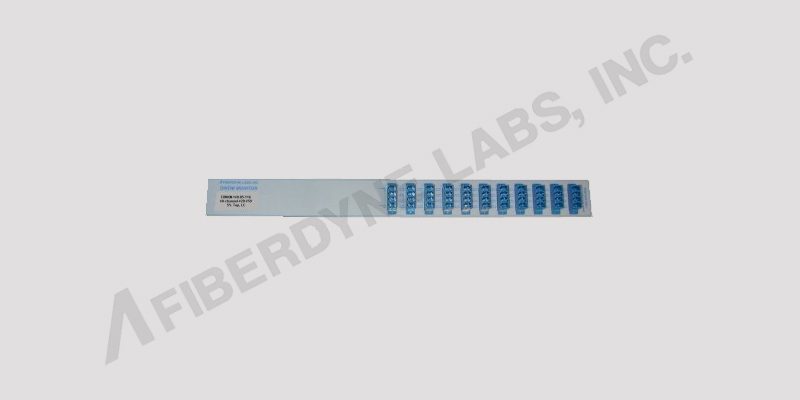

•     - 40-channel module (ITU channels 20-59) with LC connectors
• - Standard DWDM channels, according to the ITU Grid (ITU-T G.694.1)
• - Rack-mount module, 1U high, 19/23-inch rack frames (reversible brackets)

Options:

• - Alternate channel configurations are possible
    Note: Insertion losses may very slightly among channels.

• - Standard fiber-optic connectors: FC, LC, SC, ST (UPC or APC)
• - Pigtail modules also available
• - Tap percentage: 10%, 5%, and 1%

New York

Specifications:

Technical Data Sheet

Ordering Information:

F	D	M	O	N	-	X	X	X	-	X	X	-	X	X	X
1	2	3	4	5	-	6	7	8	-	9	10	-	11	12	13
F	D	M	O	N	-				-			-
FDMON = Fiberdyne Labs "Dense - WDM Monitor-Module"



Digit #	Description	Options**
6th	Wavelength Spacing	1 = 100 GhZ 2 = 200 GhZ
7th & 8th	Number of wavelengths	32 = 32-channel, Ch #s 21 - 52 (standard) 40 = 40-channel, Ch #s 20 - 59 (standard) (Note: for other configurations, list DWDM Channels in "Special Instructions.")
9th & 10th	Tap Percentage	01 = 1%  (99/01 split) 05 = 5%  (95/05 split) 10 = 10% (90/10 split)
11th	Package	1 = Rack-mount, 1U, 19/23-inch
12th	Connection Type	1 = Adapter, Bulkhead 2 = Pigtail, heavy-duty (e.g. 3-mm or 2-mm)
13th	Connector Style	1 = FC 2 = FC/APC 3 = SC 4 = SC/APC 5 = ST 6 = LC X = other; must list in "Special Instructions"**
Note: **add "Special Instructions," for custom configurations. Use "X in the part number; then list details of unique configuration. For example: if the 7th and 8th digits are "04", then list the following: "Special Instructions: (7th/8th digit): 4-channels - Ch #s 21-24.
