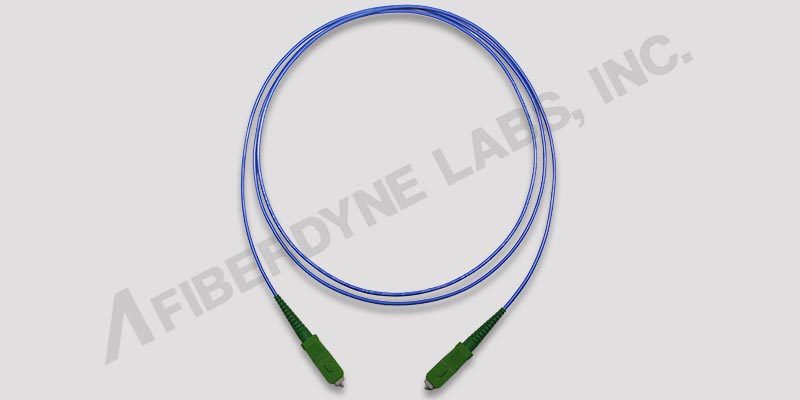

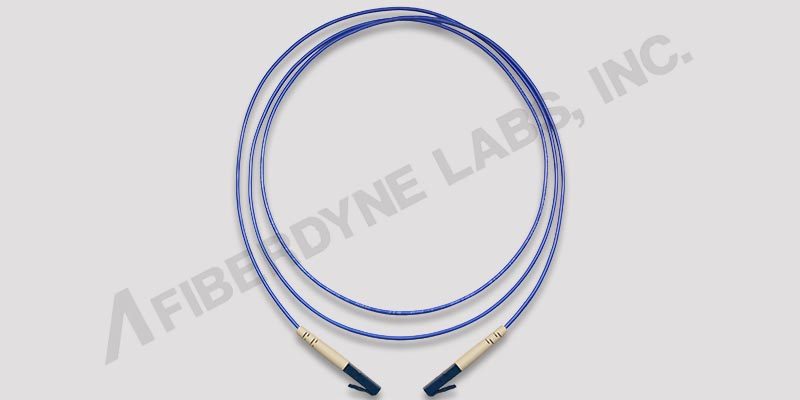

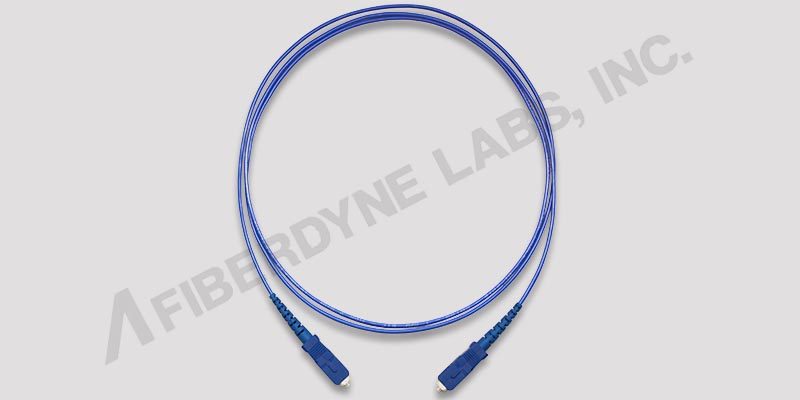

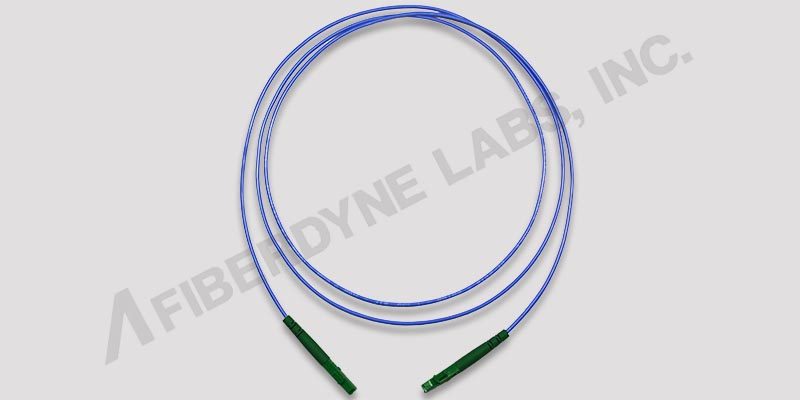

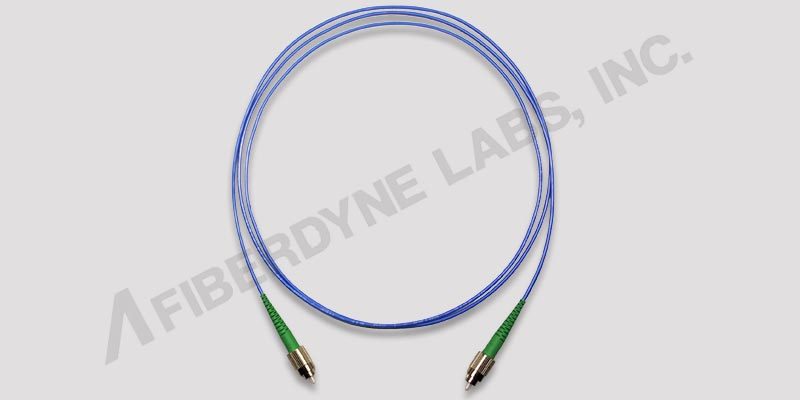

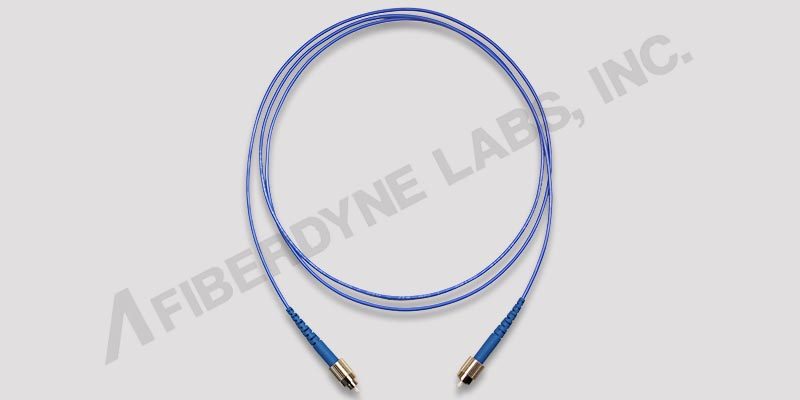

Polarization Maintaining Fiber Patchcords

Description:
Polarization Maintaining Fiber Patchcords offering low loss, high stability, and precise alignment for reliable optical communication and sensing systems.



• Features:
    - Low Insertion Loss
    - High Extinction Ratio
    - High Return Loss
    - High Stability and Reliability




• Applications:
    - Optical Amplifier
    - Optical Network
    - Power Monitoring
    - Fiber Sensor

Note: *Other connectors available.
            Other colors available.



Specifications:

Parameter Specification Center Wavelength (nm) 1310 or 1550 Connector Type FC/APC, SC/APC, LC/APC, FC/UPC, SC/UPC, LC/UPC Max. Insertion Loss (@23°C)(dB) 0.5 Min. Extinction Ratio 23 Min. Return Loss (dB) UPC Type 50 APC Type 60 Fiber Type PM 1310 or PM 1550 or Specify Key Orientation Slow Axis, Fast Axis or Specify Axis Alignment (*) ±3 or Specify Operating Temperature (°C) -10 ~ +75 Storage Temperature (°C) -40 ~ +85



Series Cable Type Cable Jacket Fiber Diameter Wavelength Axis Alignment Connector A Connector B Length Jacket Color FPMA X X X X X X X X XX Fiberdyne 1=Simplex 1=PVC (900um Only) 0=250um 3=1310nm (PM1310) 1=Slow 6=SC/UPC 6=SC/UPC 00=0.5M B=Blue Polarization   2=Reserved 9=900um 5=1550nm (PM1550) 2=Fast 7=FC/UPC 7=FC/UPC 01=1.0M Y=Yellow Maintaining   3=LSZH 2=2mm     A=FC/APC A=FC/APC 02=2.0M S=Slate/Gray Cable Assembly     3=3mm     B=SC/APC A=SC/APC - O=Orange             L=LC/UPC L=LC/UPC 10=10.0M R=Red             N=LC/APC N=LC/APC XX=Custom K=Black                   W=White                   G=Green                   Q=Aqua                   P=Purple

Note:
1. For 1550nm Assemblies Standard cable is 3mm LSZH with Blue Jacket Aligned to Slow Axis.
2. For 980nm or 1310nm Assemblies Standard cable is 3mm LSZH with Yellow Jacket Aligned to Slow Axis.
3. Colors Slate through Purple 900um Loosetube only.
4. Alternate wavelengths available, contact Fiberdyne Sales with your specific requirement.
