Fiber Optic Coupler Modules
- Products Listed on this Page:
- - 19 Inch Rack Mount Modules
- - Termination Box Coupler Modules Compatible with Fiberdyne Labs Termination Boxes
- - Fiber Optic Wall Mount Coupler Modules
PDF Version of web page
Fiber Optic Coupler Modules
| Part Number | Split Ratio | Description | Buy |
| F01-70033-00 | 50:50 | 19" Rack Mount Coupler Module with Input/Output SC Adapters, *1550nm, Exact Coupler/Splitters, 1x2 | Call to Order |
| F02-70033-00 | 33:33:33 | 19" Rack Mount Coupler Module with Input/Output SC Adapters, *1550nm, Exact Coupler/Splitters, 1x3 | Call to Order |
| F03-70033-00 | 25:25:25:25 | 19" Rack Mount Coupler Module with Input/Output SC Adapters, *1550nm, Exact Coupler/Splitters, 1x4 | Call to Order |
| F04-70033-00 | 20:20:20:20 | 19" Rack Mount Coupler Module with Input/Output SC Adapters, *1550nm, Exact Coupler/Splitters, 1x5 | Call to Order |
| F05-70033-00 | EVEN | 19" Rack Mount Coupler Module with Input/Output SC Adapters, *1550nm, Exact Coupler/Splitters, 1x6 | Call to Order |
| F06-70033-00 | EVEN | 19" Rack Mount Coupler Module with Input/Output SC Adapters, *1550nm, Exact Coupler/Splitters, 1x7 | Call to Order |
| F07-70033-00 | EVEN | 19" Rack Mount Coupler Module with Input/Output SC Adapters, *1550nm, Exact Coupler/Splitters, 1x8 | Call to Order |
| F0F-70033-00 | EVEN | 19" Rack Mount Coupler Module with Input/Output SC Adapters, *1550nm, Exact Coupler/Splitters, 1x16 | Call to Order |

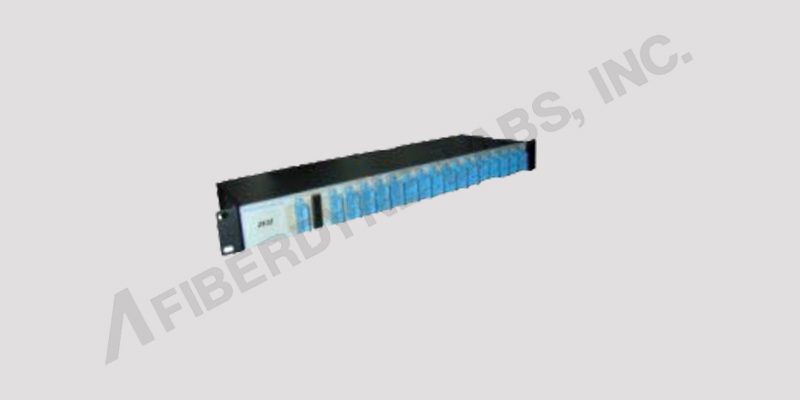

| F0G-70033-00 | EVEN | 19" Rack Mount Coupler Module with Input/Output SC Adapters, *1550nm, Exact Coupler/Splitters, 1x32 | Call to Order |
Fiber Optic Termination Box Coupler Modules
Compatible with Fiberdyne Labs Termination Boxes
| Part Number | Split Ratio | Description | Buy |
| F01-10033-00 | EVEN 50:50 | *1550nm Exact Coupler Module with Input/Output SC Adapters, 1x2 | Call to Order |
| F02-70033-00 | EVEN 33:33:33 | *1550nm Exact Coupler Module with Input/Output SC Adapters, 1x3 | Call to Order |
| F03-70033-00 | EVEN 25:25:25:25 | *1550nm Exact Coupler Module with Input/Output SC Adapters, 1x4 | Call to Order |
| F04-70033-00 | EVEN 20:20:20:20 | *1550nm Exact Coupler Module with Input/Output SC Adapters, 1x5 | Call to Order |
| Part Number | Split Ratio | Description | Buy |
| F01-90033-00 | 50:50 | With Input/Output SC Adapters, *1550nm Exact Coupler Splitters, 1x2 | Call to Order |
| F02-90033-00 | EVEN 33:33:33 | With Input/Output SC Adapters, *1550nm Exact Coupler Splitters, 1x3 | Call to Order |
| F03-90033-00 | EVEN 25:25:25:25 | With Input/Output SC Adapters, *1550nm Exact Coupler Splitters, 1x4 | Call to Order |
| F04-90033-00 | EVEN 20:20:20:20 | With Input/Output SC Adapters, *1550nm Exact Coupler Splitters, 1x5 | Call to Order |
| F05-90033-00 | EVEN | With Input/Output SC Adapters, *1550nm Exact Coupler Splitters, 1x6 | Call to Order |
| F06-90033-00 | EVEN | With Input/Output SC Adapters, *1550nm Exact Coupler Splitters, 1x7 | Call to Order |
| *Note:
- 1310nm Single Window, Singlemode, 1310/1550nm Dual Window, Singlemode are also available! - 850/1300nm Multimode Couplers are also available! |
Fiberdyne Labs, Inc.
127 Business Park Drive, Frankfort, New York
Toll Free: 800-894-9694
Phone: 315-895-8470
Fax: 315-895-8436
Email:
Most connector types are available SC, SC/APC, ST, FC, FC/APC, etc.
Call your Fiberdyne Sales Representative at 800-894-9694 or email us at New York
