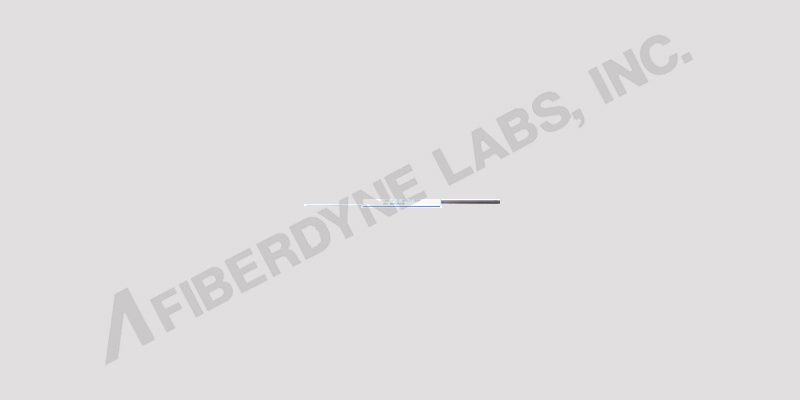

Planar Lightwave Circuit (PLC) Splitter

Introduction:
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity. These are widely used in PON networks to realize optical signal power splitting as a low-cost solution. Fiberdyne Labs Inc. provides a whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.



Technical Data Sheet



Features:
•       - Low Insertion Loss
•       - Low PDL (Polarization Dependent Loss)
•       - Compact Design
•       - High Reliability and Stability
•       - Good channel-to-channel uniformity
•       - Wide Operating Wavelength:
                   From 1260nm to 1650nm
•       - Wide Operating Temperature:
                  From -40°C to 85°C

New York

Applications:
•       - FTTX Systems
•       - PON Networks
•       - CATV Links
•       - Optical Signal Distribution

Compliance:
•       - Telcordia GR-1209-CORE
•       - Telcordia GR-1221-CORE
•       - RoHS



Specifications:
Table 1 - 1XN PLC Splitter

Parameters	1 x 2	1 x 4	1 x 8	1 x 16	1 x 32	1 x 64
Operating Wavelength	1260 - 1650
Fiber Type	G657A1
Insertion Loss (dB)	3.8	7.0	10.2	13.5	16.5	20.5
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.5
Return Loss (dB)	55	55	55	55	55	55
Polarization Dependent Loss (PDL, dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss (dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability (-40 - 85 °C) (dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature	-40 - 85 °C
Storage Temperature	-40 - 85 °C
Package Dimensions (mm) (LxWxH)	40x4x4	40x4x4	40x4x4	50x7x4	50x7x4	60x12x4
Module Dimensions (mm) (LxWxH)	100x80x10	100x80x10	100x80x10	120x80x18	140x115x18	140x115x18
Mini-Module Dimensions (mm) (LxWxH)	60x7x4	60x7x4	60x7x4	60x12x4	80x20x6	N/A



Note: Specifications subject to change without notice



Specifications:
Table 1 - 2XN PLC Splitter

Parameters	2 x 2	2 x 4	2 x 8	2 x 16	2 x 32
Operating Wavelength	1260 - 1650
Fiber Type	G657A1
Insertion Loss (dB)	4.0	7.6	11.0	14.5	17.5
Loss Uniformity (dB)	0.8	1.5	1.5	2.0	2.5
Return Loss (dB)	55	55	55	55	55
Polarization Dependent Loss (PDL, dB)	0.2	0.2	0.3	0.4	0.4
Directivity (dB)	55	55	55	55	55
Wavelength Dependent Loss (dB)	0.3	0.5	0.5	0.5	0.5
Temperature Stability (-40 - 85 °C) (dB)	0.5	0.5	0.5	0.5	0.5
Operating Temperature	-40 - 85 °C
Storage Temperature	-40 - 85 °C
Package Dimensions (mm) (LxWxH)	40x4x4	40x4x4	50x7x4	50x7x4	60x7x4
Module Dimensions (mm) (LxWxH)	100x80x10	100x80x10	100x80x10	120x80x18	140x115x18
Mini-Module Dimensions (mm) (LxWxH)	60x7x4	60x7x4	60x7x4	60x12x4	80x20x6

Notes:
   1. Specified without connectors
   2. Add an additional 0.2dB loss per connector

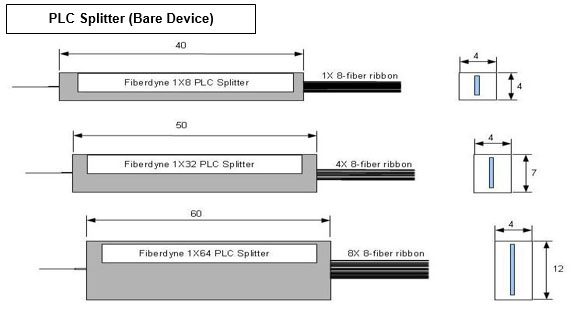

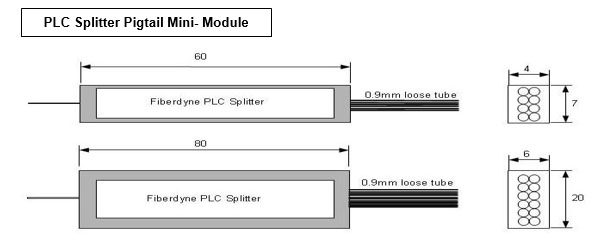

Mechanical Dimensions:







Ordering Information:

FPD	-	XXX	-	X	XX	X	XX	-	X	X
		Port Configuration		Input Fiber Type	Input Fiber Length	Output Fiber Type	Output Fiber Length		Input Connector	Output Connector
F=Fiberdyne		102=1x2		B=250µm bare fiber	10=1.0m	B=250µm bare fiber	10=1.0m		0=None	0=None
P=PLC Splitter		104=1x4			15=1.5m	R=Ribbon Fiber	15=1.5m
Device					25=2.5		25=2.5
		108=1x8
		116=1x16
		132=1x32
		164=1x64
		202=2x2
		204=2x4
		208=2x8
		216=2x16
		232=2x32

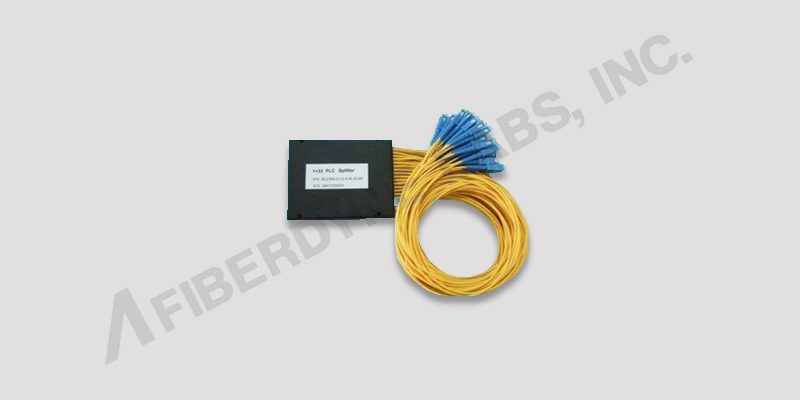

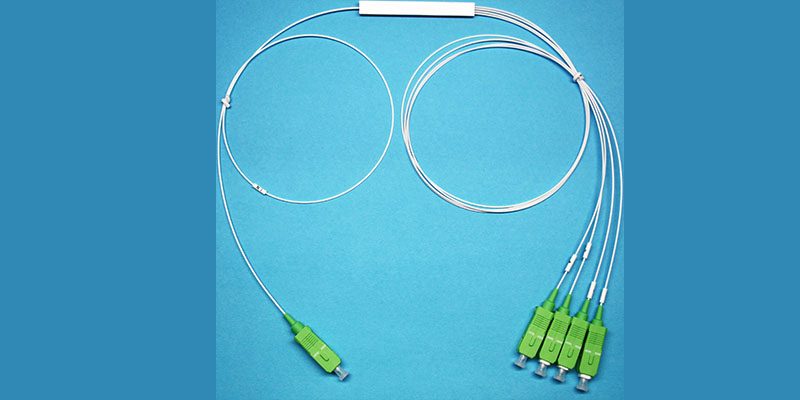

PLC Splitter Pigtail Module (including Mini-Module)

FPP	-	XXX	-	XX	XX	XX	XX	-	X	X
		Port Configuration		Pigtail Module Type	Fiber Type	Input Fiber Type	Output Fiber Length		Input Connector	Output Connector

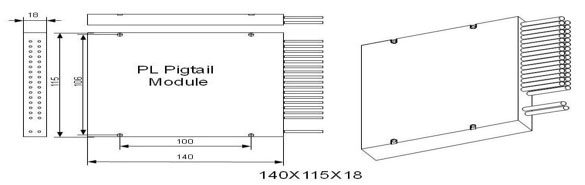

F=Fiberdyne		102=1x2		PL=140x115x18, ABS	09=0.9mm (900µm)	10=1.0m	10=1.0m		0=None	0=None
P=PLC Splitter		104=1x4		PM=120x80x18mm, ABS,	20=2.0mm	15=1.5m	15=1.5m		1=FC/UPC	1=FC/UPC

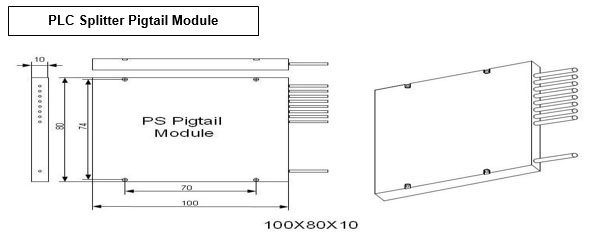

P=Pigtail Module				PS=100x80x10mm, ABS	30=3.0mm	25=2.5m	25=2.5m		2=FC/APC	2=FC/APC
		108=1x8		MM=Mini Module		XX=Custom	XX=Custom		3=SC/UPC	3=SC/UPC
									4=SC/APC	4=SC/APC
		116=1x16							7=Custom	7=Custom
									L=LC/UPC	L=LC/UPC
		132=1x32							N=LC/APC	N=LC/APC
		164=1x64
		202=2x2
		204=2x4
		208=2x8
		216=2x16
		232=2x32



Notes for above:
   1. Package PS is standard package for 1x2, 1x4, 1x8, 2x4, 2x8.
   2. Package PL is standard package for 1x32, 2x32.
   3. Package PM is standard package for 1x16, 2x16.
   4. Package MM only 1 meter 900µm loose tube available. 1x64 not available in MM package.
   5. Custom length not available in all configurations (requires fusion splicing additional fiber).
