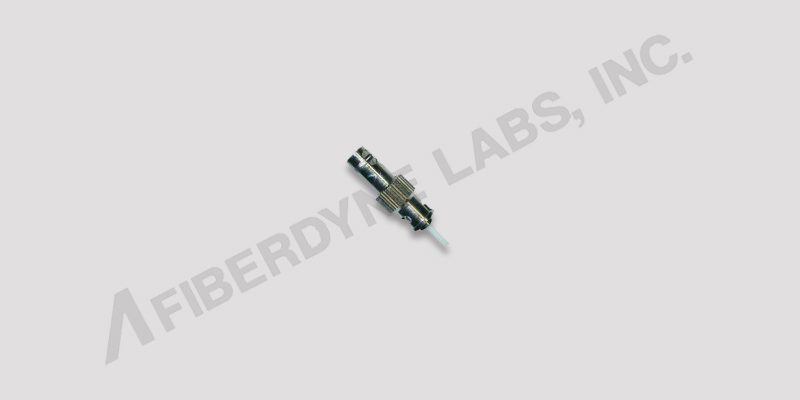

Fiberdyne Labs, Inc. ST/UPC Attenuators



Description:
High‑quality ST fiber attenuators for precise optical signal control. Available in 1-20dB levels for reliable performance in telecom and data networks.



Specifications:
PDF Version of Web page



Description Units Value Technology Type   Doped Fiber Standard Available Values dB 1-10, 15, 20 Return Loss dB >50, Typical 55 Attenuation Accuracy dB ±0.5 (1-8dB); ±10% level Angle & Tolerance ° Not Applicable Repeatability Cycles >500 Operating Temperature °C -40 to +75 Humidity Range % 5-95 Non-condensing Body Dimensions cm 5.0 X 1.0 X 1.0 Body Materials   Metal or Polymer Standards Compliance   Telcordia



ST/UPC Attenuators Part Number Description Attenuation Order FCR011101 Male/Female 1310/1550 1dB Call to Order FCR011102 Male/Female 1310/1550 2dB Call to Order FCR011103 Male/Female 1310/1550 3dB Call to Order FCR011104 Male/Female 1310/1550 4dB Call to Order FCR011105 Male/Female 1310/1550 5dB Call to Order FCR011106 Male/Female 1310/1550 6dB Call to Order FCR011107 Male/Female 1310/1550 7dB Call to Order FCR011108 Male/Female 1310/1550 8dB Call to Order FCR011109 Male/Female 1310/1550 9dB Call to Order FCR011110 Male/Female 1310/1550 10dB Call to Order FCR011111 Male/Female 1310/1550 11dB Call to Order FCR011112 Male/Female 1310/1550 12dB Call to Order FCR011113 Male/Female 1310/1550 13dB Call to Order FCR011114 Male/Female 1310/1550 14dB Call to Order FCR011115 Male/Female 1310/1550 15dB Call to Order FCR011116 Male/Female 1310/1550 16dB Call to Order FCR011117 Male/Female 1310/1550 17dB Call to Order FCR011118 Male/Female 1310/1550 18dB Call to Order FCR011119 Male/Female 1310/1550 19dB Call to Order FCR011120 Male/Female 1310/1550 20dB Call to Order
